The Safety Shield 360º Surround View system seamlessly calibrates and video merges on the in-cab screen display, the vehicle can move at any speed without any blurring images occurring.

The system fully records (when the vehicle ignition is on) from all 4 cameras. The system does not record constantly when the ignition is turned off, however it recognises when the vehicle has been hit by another vehicle, object or someone attempting to break in. This is achieved through the use of vibration sensors and therefore records the impact despite the ignition being turned off.

The cameras provided with the Safety Shield 360° 3D surround view system are ultra 190° fish eye WDR (Wide Dynamic Range) cameras.  WDR cameras help give a clearer view at night time when the surrounding light intensity is much lower than daylight intensity which enhances the recordings of the in-cab display in both scenarios.


Features

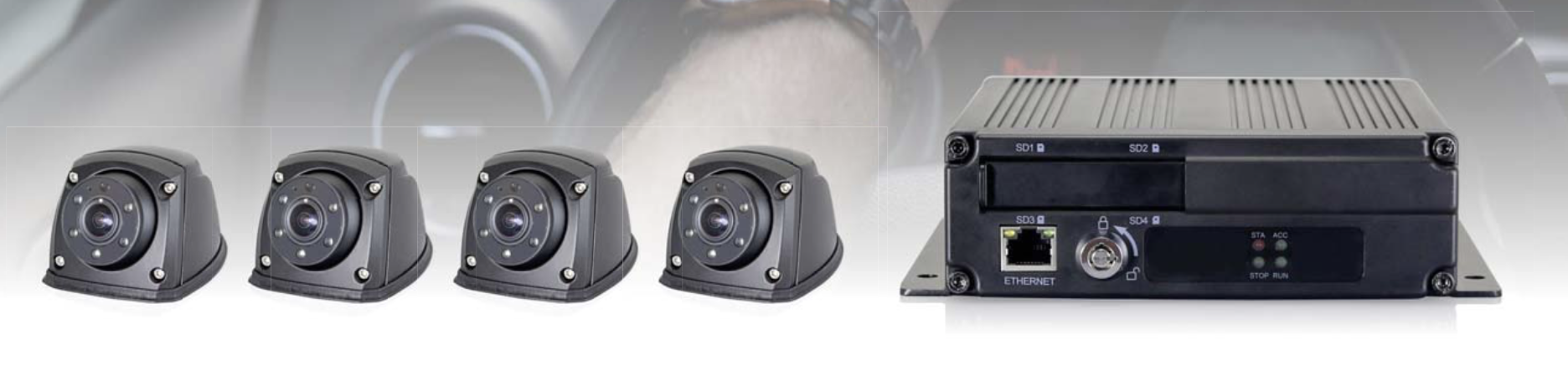

  • Four 190° ultra-wide fish eye cameras

  • Seamless video merging

  • Dynamic 3D mode view angle for better surrounding observation

  • Independent fish eye calibration parameter and algorithm for each camera

  • Auto brightness balance from all 4 cameras

  • High video recording resolution (1080p)

  • Optional recording to SD card 128GB or MDVR up to 1TB

Screen Shot 2019-05-13 at 12.43.36.png

Screen Shot 2019-05-13 at 12.41.36.png

Installation

No specialist installer is required to install the system to the vehicle, the manual clearly explains step by step how to install the system. The manual and in cab display both clearly explain how to calibrate the system using the simple calibration instructions and what is required throughout the calibration process. The image is then enhanced with a high definition signal output helping to deliver a crystal-clear display of the bird’s eye and surround view.

Screen Shot 2019-05-13 at 13.11.43.png

Screen Shot 2019-05-13 at 12.40.42.png

Bus/Coach

Standard example of the camera configuration for a bus or coach.

Screen Shot 2019-05-13 at 12.40.49.png

HGV/LGV

Standard example of the camera configuration for a HGV or LGV.


2D or 3D options

On the in-cab monitor the images shown can be in 2D or 3D.

Below are some examples of each;

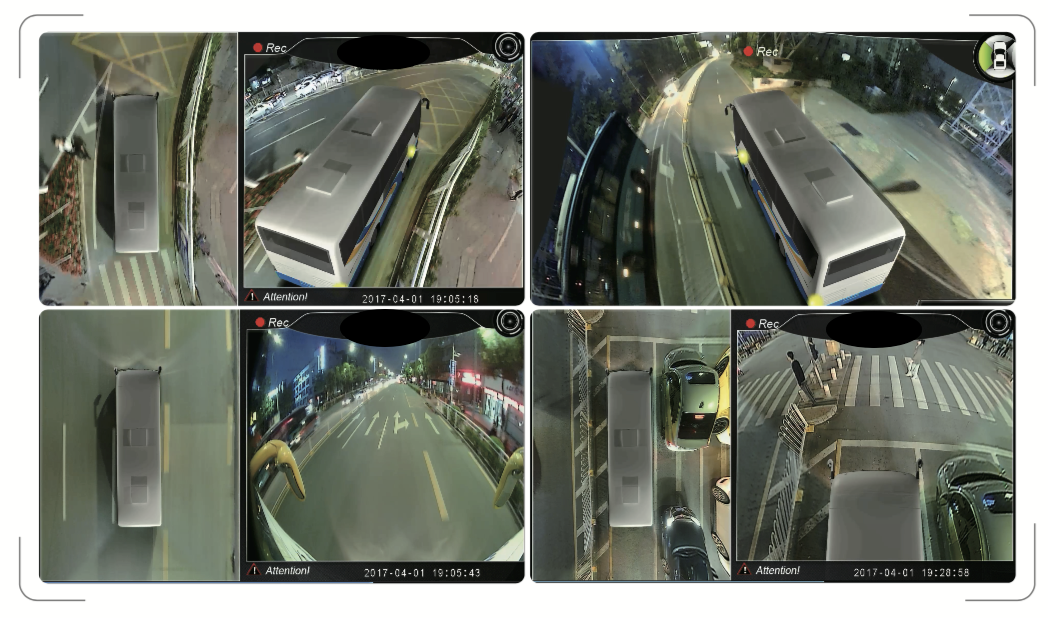

3D examples

Screen Shot 2019-05-13 at 12.49.33.png
Screen Shot 2019-05-13 at 12.49.41.png

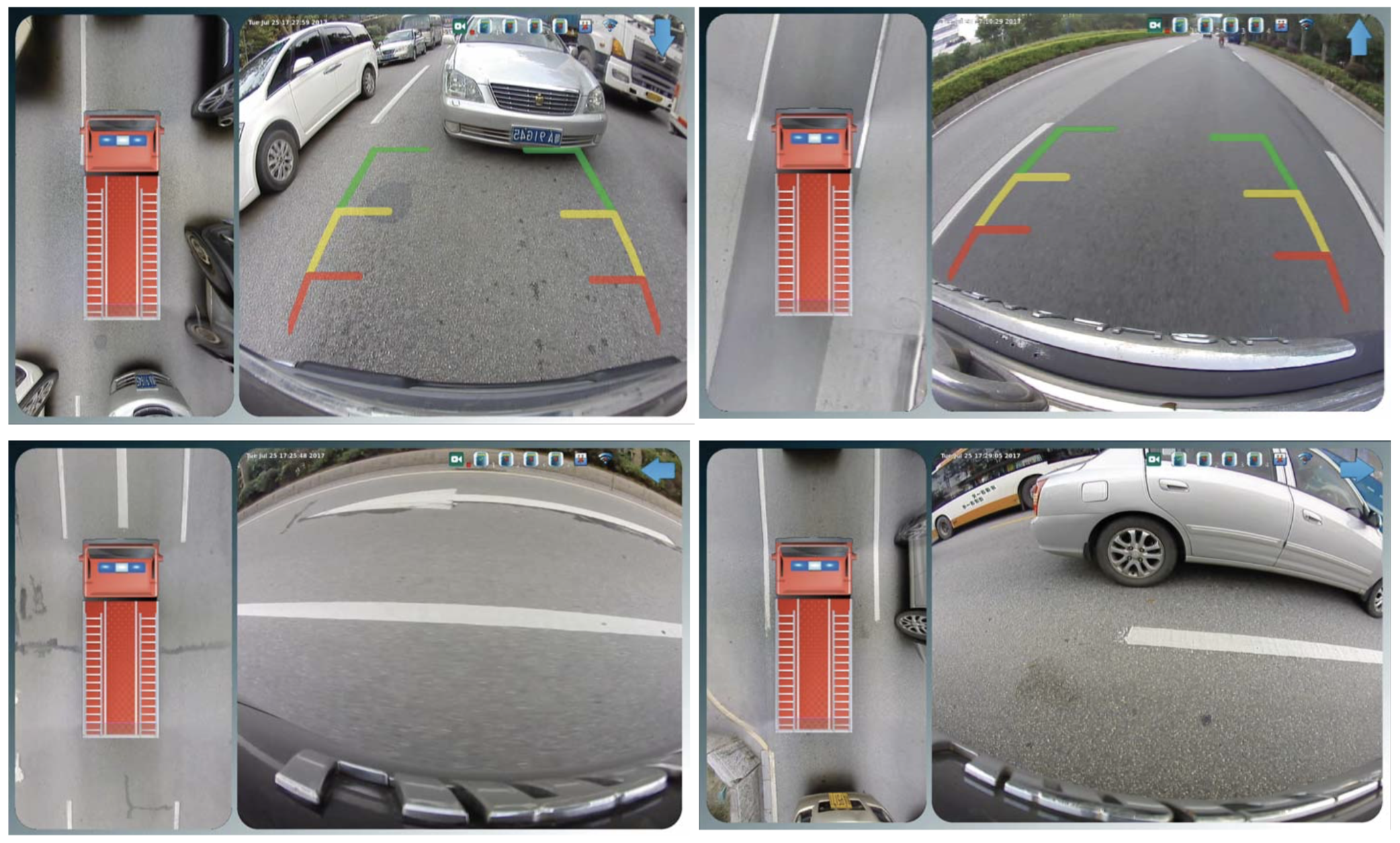

2D examples

Screen Shot 2019-05-13 at 13.10.46.png

Tracking function

An optional extra with Safety Shield’s 360° surround view camera is the vehicle tracking. Inserted 3G/4G/GPS/WIFI module supports real-time video recording and vehicle tracking.

Screen Shot 2019-05-13 at 13.20.16.png

examples of where having 360° surround view would come into handy on a range of vehicles.

Screen Shot 2019-05-13 at 13.16.11.png
